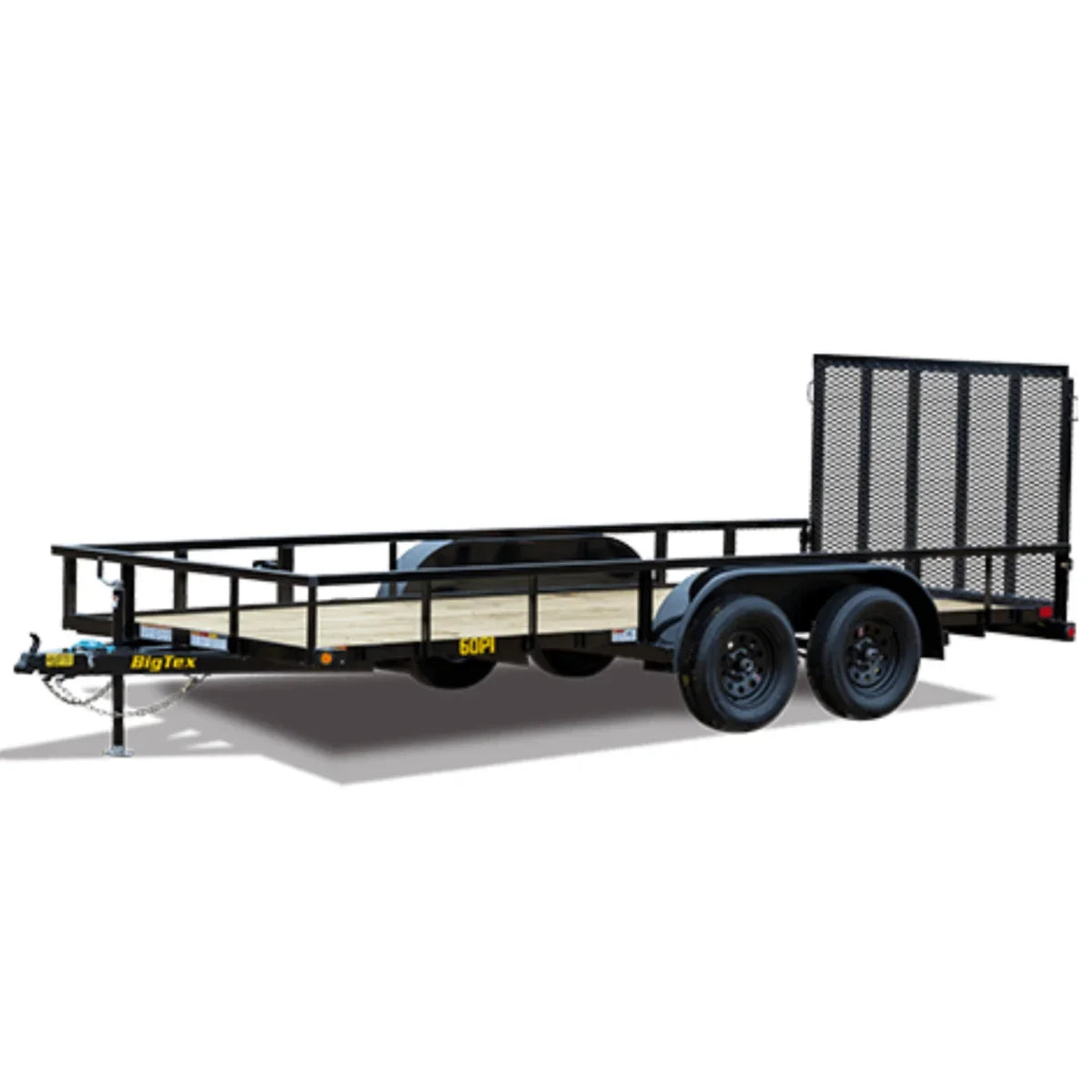

The Big Tex 60PI Tandem Axle Pipe Top Utility Trailer is built to handle light-duty equipment transportation with dependable strength and versatility. Designed with a 6,000 lb GVWR, tandem 3,500 lb premium cambered axles, reinforced construction, and a spacious open-bed design, the 60PI is ready for demanding hauling jobs.
Whether you're transporting small tractors, side-by-sides, landscaping equipment, construction materials, or general cargo, the 60PI provides a practical and reliable hauling solution. Optional slide-in ramps and rear ramp gates make loading and unloading equipment easier and more convenient.
Key Features
- 6,000 lb GVWR for dependable hauling capacity
- Tandem 3,500 lb premium cambered axles
- Quick-lubricating axle hubs
- Multi-leaf spring suspension with equalizer
- Electric brake on front axle
- Optional electric brakes on second axle
- 2″ A-frame with forged coupler
- 1/4″ Grade 30 safety chains with safety latch hooks
- 2,000 lb top-wind set-back jack with removable sand foot
- 3″ × 2″ × 3/16″ angle cross-members
- Durable treated pine floor
- 9″ × 72″ rolled-formed fenders
- 17″ tall open sides
- 2″ angle uprights with 2″ × 2″ square tubing top rail
- Four interior tie-down loops
- 7-way RV trailer plug
- Lifetime grommet-mounted LED lighting
- ST205/75 R-15 Load Range C tires
- Professional finish with primer
- Multiple paint color options
Available Options
The Big Tex 60PI can be configured with a variety of available options, including:
- Electric brakes on second axle
- 2,000 lb fold-up jack
- Blackwood Pro rubber-infused lumber floor
- 1/8″ diamond plate steel floor
- 4′ slide-in angle ramps
- 4′ tall bi-fold rear ramp gate with coil spring assist
- 4′ tall rear ramp gate with coil spring assist
- 5′ tall rear ramp gate with coil spring assist
- Additional stake pockets
- Spare tire and spare tire mount
- Side spare tire mount
- Additional tie-down loops
- 2′, 3′, or 4′ high open sides
- Car-hauler style configuration without side rails
- Expanded-metal enclosed sides
- Sheet-metal enclosed sides
Model Specifications
| Specification | 60PI-12 | 60PI-14 | 60PI-16 |
|---|---|---|---|
| Pull Type | Bumper Pull | Bumper Pull | Bumper Pull |
| GVWR | 6,000 lbs | 6,000 lbs | 6,000 lbs |
| GAWR – Each Axle | 3,500 lbs | 3,500 lbs | 3,500 lbs |
| Empty Weight | 1,265 lbs | 1,400 lbs | 1,535 lbs |
| Cargo Capacity | 4,735 lbs | 4,600 lbs | 4,465 lbs |
| Bed Length | 12′ | 14′ | 16′ |
| Bed Width | 77″ | 103″ | 77″ |
| Tongue Length | 37″ | 37″ | 37″ |
Dimensions
60PI-12
- Bed: 12′ × 77″
- Dimension A: 145-1/2″
- Dimension B: 85″
- Dimension C: 60-1/2″
- Tongue Length: 37″
60PI-14
- Bed: 14′ × 103″
- Dimension A: 169-1/2″
- Dimension B: 103″
- Dimension C: 72-1/2″
- Tongue Length: 37″
60PI-16
- Bed: 16′ × 77″
- Dimension A: 193-1/2″
- Dimension B: 115″
- Dimension C: 78-1/2″
- Tongue Length: 37″
Ideal For
The Big Tex 60PI is well suited for transporting:
- Small tractors
- Side-by-side vehicles
- Landscaping equipment
- Lawn and outdoor equipment
- Construction materials
- Farm equipment
- Tools and machinery
- General cargo
